Product Summary
The CP2102GM is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space.
Parametrics
Absolute maximum ratings: (1)Ambient temperature under bias:–55℃ to 125℃; (2)Storage Temperature:–65℃ to 150℃; (3)Voltage on any I/O Pin or RST with respect to GND:–0.3V to 5.8V; (4)Voltage on VDD with respect to GND:–0.3V to 4.2V; (5)Maximum Total current through VDD and GND:500mA; (6)Maximum output current sunk by RST or any I/O pin:100mA.
Features
Features: (1)On-chip power-on reset circuit; (2)On-chip voltage regulator: 3.3 V output; (3)100% pin and software compatible with CP2101; (4)Baud rates: 300 bps to 1 Mbits; (5)576 Byte receive buffer; 640 byte transmit buffer; (6)Hardware or X-On/X-Off handshaking supported; (7)Event character support ; (8)Line break transmission; (9)Works with Existing COM Port PC Applications; (10)Royalty-Free Distribution License; (11)Windows Vista/XP/Server 2003/2000/98SE; (12)Mac OS-X / OS-9; (13)Linux ; (14)Royalty-Free Distribution License; (15)Windows Vista/XP/Server 2003/2000; (16)Windows CE 5.0 and 4.2.

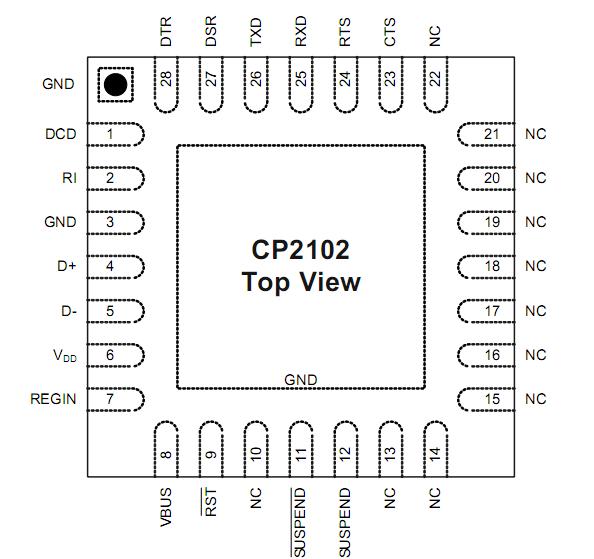

Diagrams
 |
