Product Summary

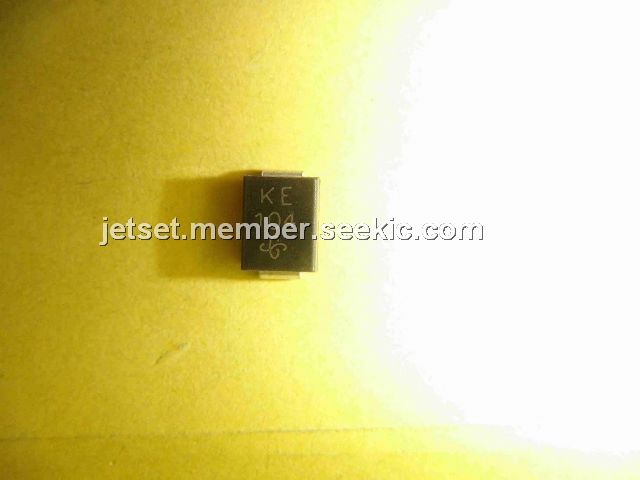

The SMBJ5.0CA is a Surface Mount TRANSZORB Transient Voltage Suppressor.
Parametrics
SMBJ5.0CA absolute maximum ratings: (1)Peak Pulse Power Dissipation on 10/1000μs waveform: Minimum 600 Watts; (2)Peak forward surge current 8.3 ms single half sine-wave uni-directional only: 100 A; (3)Operating Junction and Storage Temperature Range: -55 to + 150 ℃.
Features
SMBJ5.0CA features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %; (6)Excellent clamping capability; (7)Very fast response time.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ5.0CA |
AVX |
TVS Diodes - Transient Voltage Suppressors 5volts 600watts BiDirectional |
Data Sheet |
|
|
||||||||||||||
 |
SMBJ5.0CA R4 |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 5.0V 600W 5% Bidir |
Data Sheet |
|
|
||||||||||||||
|
SMBJ5.0CA/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Bidir |
Data Sheet |
|
|
||||||||||||||
|
SMBJ5.0CA/2B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Bidir |
Data Sheet |
|
|
||||||||||||||
|
SMBJ5.0CA/2C |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Bidir |
Data Sheet |
|
|
||||||||||||||
|
SMBJ5.0CA/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Bidir |
Data Sheet |
|
|
||||||||||||||
|
SMBJ5.0CA-13-F |
Diodes Inc. |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V |
Data Sheet |
|
|
||||||||||||||
|
SMBJ5.0CA/5 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 5.0V 5% Bidir |
Data Sheet |
|
|
||||||||||||||
