Product Summary

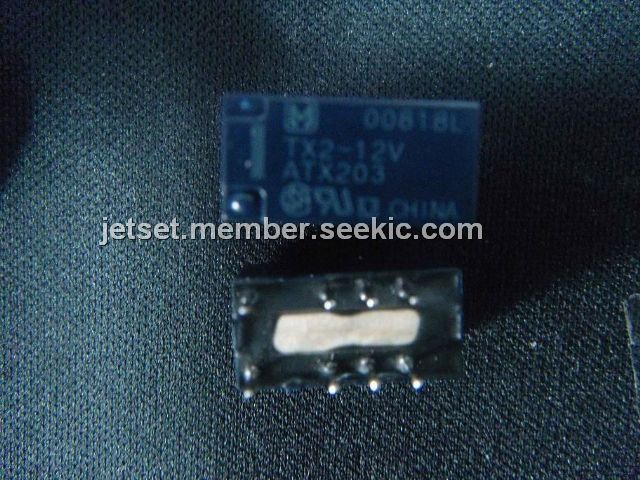

The TX2-12V ATX203 is a relay compliant with RoHS Directive.

Parametrics

Absolute maximum ratings: (1)Nominal switching capacity Standard contact: 2 A 30 V DC, AgPd contact: 1 A 30 V DC (resistive load); (2)Max. switching power Standard contact: 60 W (DC), AgPd contact: 30 W (DC) (resistive load); (3)Max. switching voltage: 220V DC; (4)Max. switching current Standard contact: 2 A, AgPd contact: 1 A; (5)Min. switching capacity (Reference value)*1: 10μA 10mV DC.

Features

Features: (1)2,000 V breakdown voltage between contact and coil; (2)Outstanding surge resistance; (3)Nominal operating power: High sensitivity of 140mW; (4)High contact capacity: 2 A 30 V DC; (5)Compact size; (6)The use of gold-clad twin crossbar contacts ensures high contact reliability.

Diagrams

TX2-1.5V-TH
TX2-1.5V-TH

RELAY GEN PURPOSE DPDT 2A 1.5V
Data Sheet
0-1: $2.45
1-25: $2.25
25-50: $2.00
50-100: $1.70
100-500: $1.50
500-1000: $1.45
1000-5000: $1.40
5000-10000: $1.33
10000-25000: $1.30
