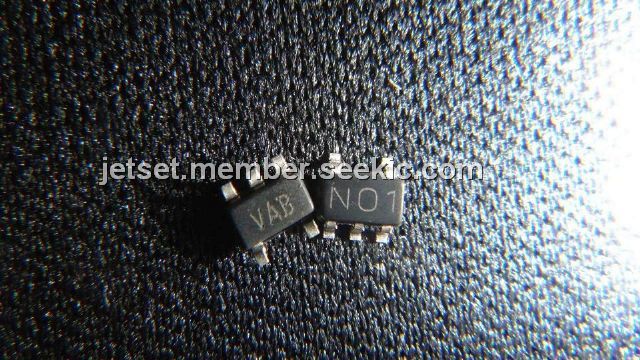

Product Summary
The DS90LV011ATMF is a single LVDS driver device optimized for high data rate and low power applications. The DS90LV011ATMF is a current mode driver allowing power dissipation to remain low even at high frequency.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (VDD): -0.3V to +4V; (2)LVCMOS input voltage (TTL IN): -0.3V to +3.6V; (3)LVDS output voltage (OUT±): -0.3V to +3.9V; (4)LVDS output short circuit current: 24mA; (5)Storage Temperature: -65℃ to +150℃; (6)Lead Temperature Range Soldering (4 sec.): +260℃; (7)Maximum Junction Temperature: +150℃.
Features
Features: (1)Conforms to TIA/EIA-644-A Standard; (2)>400Mbps (200MHz) switching rates; (3)700 ps (100 ps typical) maximum differential skew; (4)1.5 ns maximum propagation delay; (5)Single 3.3V power supply; (6)±350 mV differential signaling; (7)Power Off Protection (outputs in TRI-STATE); (8)Pinout simplifies PCB layout; (9)Low power dissipation (23 mW @ 3.3V typical); (10)SOT-23 5-lead package.

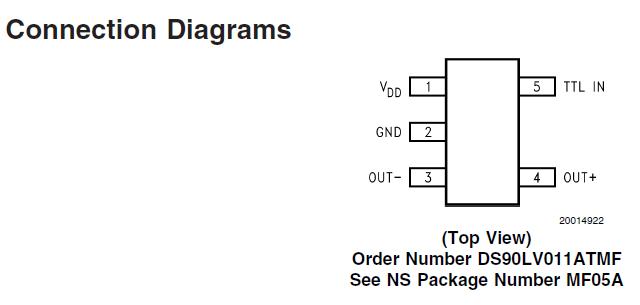

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

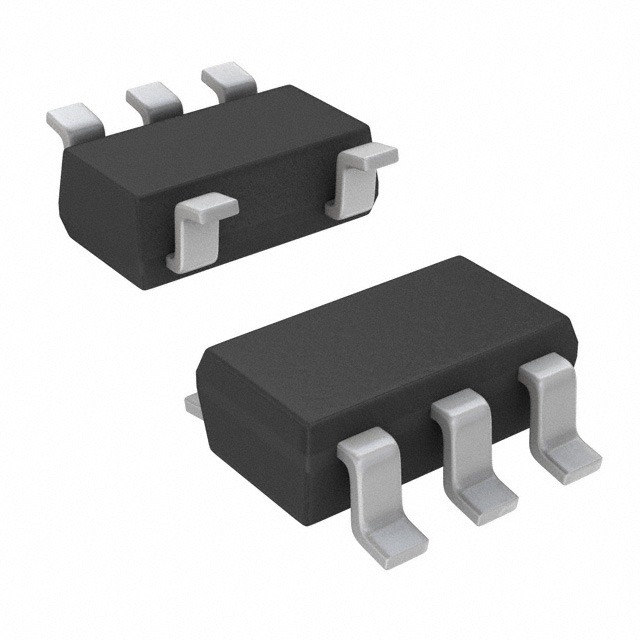

 DS90LV011ATMF |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
||||||||||||
 |
DS90LV011ATMF/NOPB |
National Semiconductor (TI) |
LVDS Interface IC SGL HIGH SPD DIFF DRVR |
Data Sheet |
|
|
||||||||||||
 |
DS90LV011ATMFX/NOPB |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
||||||||||||
|
DS90LV011ATMFX |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
||||||||||||
