Product Summary
The MC33275ST-3.3 is a micropower low dropout voltage regulator available in a wide variety of output voltages as well as packages, DPAK, SOT–223, and SOP–8 surface mount packages.
Parametrics
Absolute maximum ratings: (1)Input Voltage: 13 Vdc; (2)Output Current: 300 mA; (3)Maximum Junction Temperature: 150 ℃; (4)Operating Junction Temperature Range: -40 to +125 ℃; (5)Storage Temperature Range: -65 to +150 ℃.
Features
Features: (1)Low Quiescent Current (125 μA); (2)Low Input-to-output Voltage Differential of 25 mV at IO = 10 mA, and 260 mV at IO = 300 mA; (3)Extremely Tight Line and Load Regulation; (4)Stable with Output Capacitance of only 0.33 μF for 2.5 V Output Voltage; (5)Internal Current and Thermal Limiting.

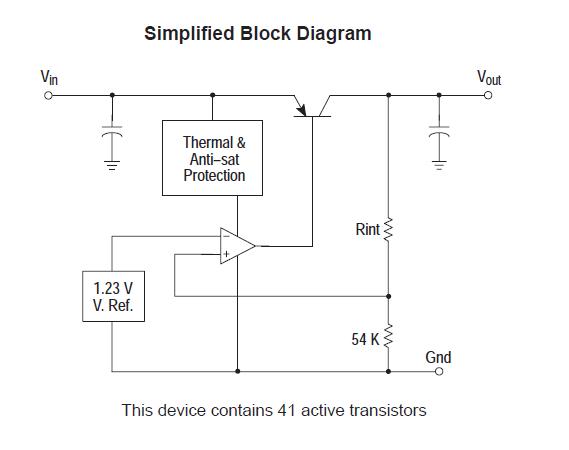

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33275ST-3.3T3 |
ON Semiconductor |
Low Dropout (LDO) Regulators 3.3V 300mA |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33275ST-3.3T3G |
ON Semiconductor |
Low Dropout (LDO) Regulators 3.3V 300mA |
Data Sheet |
|
|
||||||||||||
