Product Summary
The L78M20ABDT-TR three-terminal positive regulator is available in TO-220 and DPAK packages and with several fixed output voltages, making it useful in a wide range of applications.
Parametrics
Absolute maximum ratings: (1)DC Input Voltage for VO = 5 to 18V: 35 V, for VO = 20, 24V: 40 V; (2)Output Current: Internally Limited; (3)Power Dissipation: Internally Limited; (4)Storage Temperature Range: -65 to +150 ℃; (5)Operating Junction Temperature Range: -40 to 125 ℃.
Features
Features: (1)output current to 0.5A; (2)output voltages of 5; 6; 8; 9; 10; 12; 15; 18; 20; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition SOA protection; (6)±2% output voltage tolerancE; (7)guaranteed in extended temperature range.

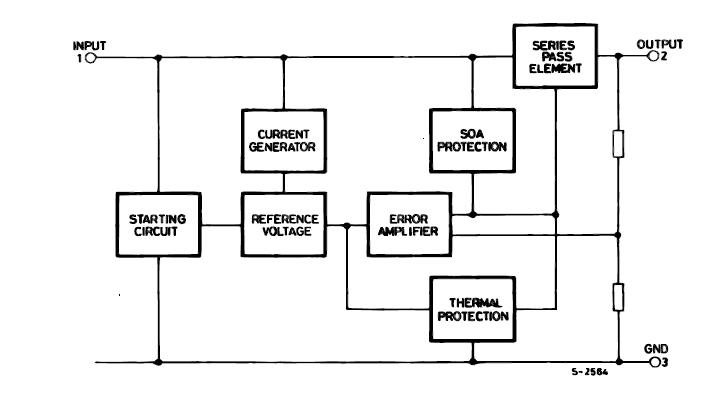

Diagrams

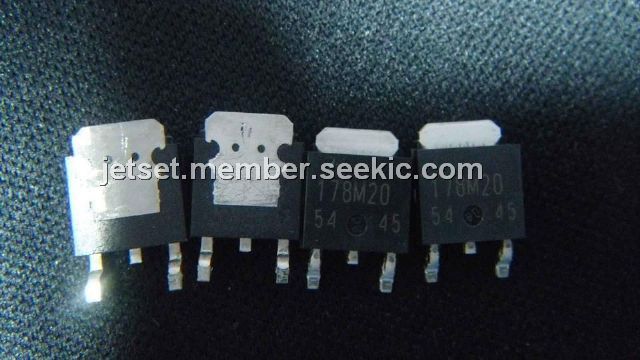

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L78M20ABDT-TR |
STMicroelectronics |
Linear Regulators - Standard 20V 0.5A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
