Product Summary
The LP2950CDT-5.0 is a micropower voltage regulator that is specifically designed to maintain proper regulation with an extremely low input–to–output voltage differential.
Parametrics
Absolute maximum ratings: (1)input voltage: 30 Vdc; (2)feedback input voltage: -1.5 to +30 Vdc; (3)shutdown input voltage: -0.3 to +30 Vdc; (4)error comparator output voltage: -0.3 to +30 Vdc; (5)operating junction temperature: -40 to +125℃; (6)storage temperature range: -65 to +150℃.
Features
Features: (1)Low Quiescent Bias Current of 75 mA; (2)Low Input-to-output Voltage Differential of 50 mV at 100 μA and 380 mV at 100 mA; (3)5.0 V, 3.3 V or 3.0 V±0.5% Allows Use as a Regulator or Reference; (4)Extremely Tight Line and Load Regulation; (5)Requires Only a 1.0 μF Output Capacitor for Stability; (6)Internal Current and Thermal Limiting.

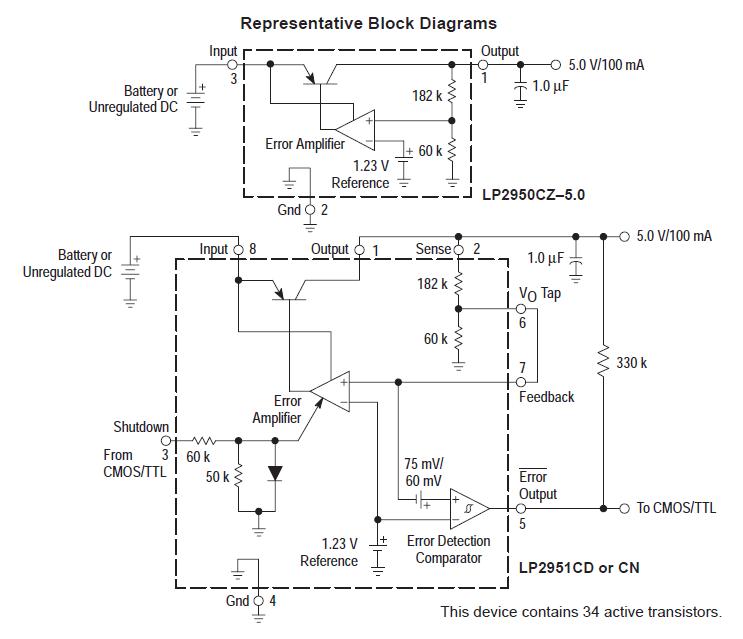

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LP2950CDT-5.0 |
![]() National Semiconductor (TI) |
![]() Low Dropout (LDO) Regulators |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LP2950CDT-5.0/NOPB |
![]() National Semiconductor (TI) |
![]() Low Dropout (LDO) Regulators 100MA LDO DPAK |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LP2950CDT-5.0RKG |
![]() ON Semiconductor |
![]() Low Dropout (LDO) Regulators 5V 100mA Low Power |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LP2950CDT-5.0G |
![]() ON Semiconductor |
![]() Low Dropout (LDO) Regulators 5V 100mA Low Power |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LP2950CDT-5.0RK |
![]() ON Semiconductor |
![]() Low Dropout (LDO) Regulators 5V 100mA Low Power |
![]() Data Sheet |
![]() Negotiable |
|
